Welcome to ZTA POWER COMPANY
Brand:
PerkinsItem NO.:
BP350-650kvaOrder(MOQ):
1Payment:
T/T 30%, 70% or LC 100% at sight.Price Range:
25000 - 45000/$1Product Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
2-4 weeksProduct Detail
BA Power Commercial diesel generators for sale and famous brand alternator.
Manufacturer
Perkins Engines Company Limited
Model
4006-23TAG3A
Engine speed
1500rpm
--------------------Continuous Baseload
566kw
----------------------------Standby power
786kw
--------------------------Prime Power
705kw
Combustion system
Direct injection
Type
4 stroke cycle , Verticle In-line, 6-cylinder
Aspiration
Turbocharged,air-to-air charge cooled
Bore * Stroke
160 x 190 mm
Displacement
22.921 litres
Compression ratio
13.6:1
Direction of rotation
Anti-clockwise, viewed
on flywhee
Firing order
1, 5, 3, 6, 2, 4
Total lubrication system capacity
113.4 litres
Total coolant capacity
105 litres
Total dry weight
2524 kg
Dimensions(Length*Width*Height)
3027 *1706*1964mm

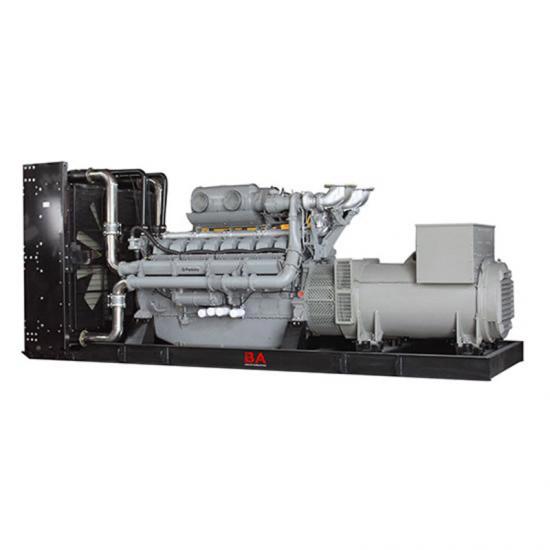

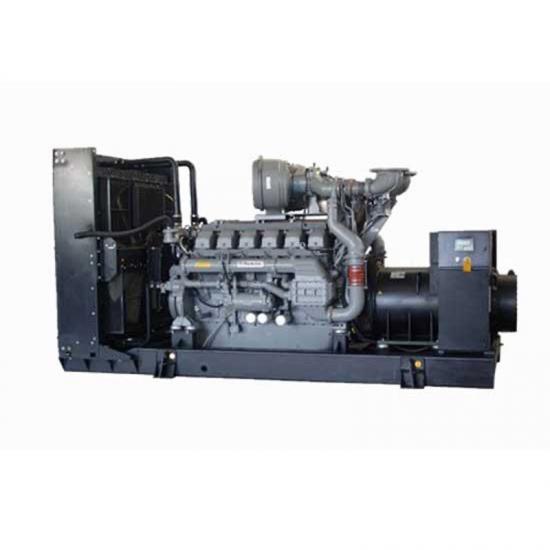

Perkins Generator Set 4006-23TAG3A 640KW Detail Show
FILTERS
ATS (generator automatic transfer switch), Synchronize System
FAQ:
2. What is your standard diesel generator suppliers Supply Scope?
Brand new Engine, Brand new Alternator,brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR. If you want on IP 44 or higher standard we also can supply, this need on extra cost.
Heavy duty industrial type silencer with flexible bellow.
3. Vibration Pad:Vibration damping supports between Engine/Alternator and base frame.
6.Radiator:Standard 40 or 50 Degree Radiator with safety guard.
7.Control Panel：Auto mains failure control panel, Deep sea 6120 model as standard supply.
8. Battery: High capacity lead acid battery c/w battery cables.
9. Circuit Breaker:3-pole or 4 -Pole output manual circuit breaker.
10.Base Fuel Tank:Below 500KW, skid-mounted bottom fuel tank for 8hrs full load as standard supply. Above 500kw, storage fuel tank is provided at extra cost.
11. Shipping Docs:Standard tool kits and complete operation//manuals to Engine/Alternator/control panel,etc, Invoice, Packing List
