Welcome to ZTA POWER COMPANY
Brand:
PerkinsItem NO.:
BP660Order(MOQ):
1Payment:
T/T 30%, 70% or LC 100% at sight.Price Range:
40000 - 52000/$1Product Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
30-45 daysProduct Detail

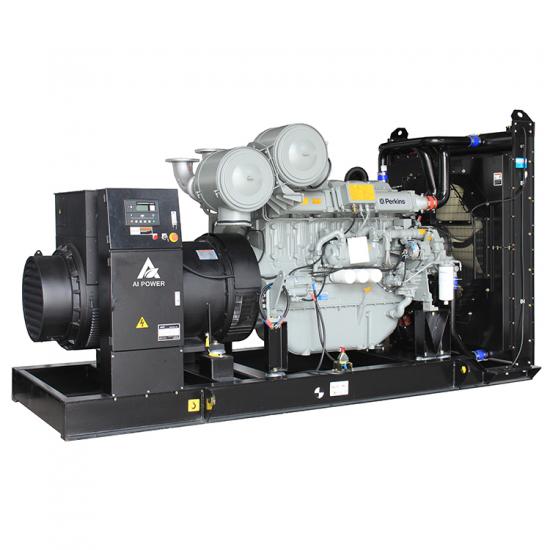

High quality 480kw 600kva diesel generator set price 2806C-E18TAG1A
The Perkins 2800 Series is a family of well-proven 6 cylinder 16 and 18 litre inline diesel engines, designed to address today’s uncompromising demands within the power generation industry with particular aim at the standby market sector. Developed from a proven heavy-duty industrial base, the engine offers superior performance and reliability. The 2806C-E18TAG1A is a turbocharged and air-to-air chargecooled, 6 cylinder diesel engine of 18 litres capacity. Its premium features provide economic and durable operation, low

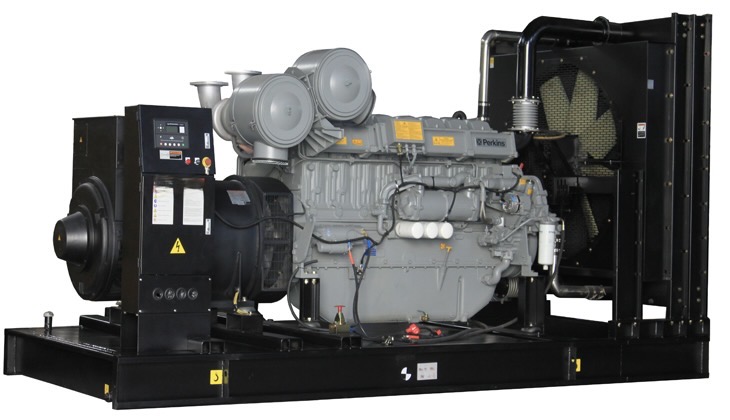

Temperature At 50 Degree 1000kva perkenes generator perkins diesel engine model 4008TAG2
| Generator set model | Voltage | Hz | Phase | P.F. | Prime Power | Standby Power | ||
| (V) |
|
|
|
KVA | KW | KVA | KW | |
| AP1100 | 230/400 | 50 | 3 | 0.8 | 1000 | 800 | 1100 | 880 |
Dimension & weight
| Generator set model | Type | L*W*H(mm) | Weight(kg) | |||||
| AP1100 | Open | 4630*2030*2400 | 8100 | |||||
| Silent | 5700*2280*2500 | 10200 | ||||||
Other datas
| Circuit Breaker capacity (A) | 1600 | |||||||
| Battery brand | Varta | |||||||
| Base Fuel Tank Capacity(L) | N/A | |||||||
GENERAL ENGINE DATA
| Engine manufacture | Perkins Engines Company Limited | |||||||||||
| Engine brand | Perkins | |||||||||||
| Engine model | 4008TAG2A | |||||||||||
| Engine speed (rpm) | 1500 | |||||||||||
|
|
Baseload power | Prime power | Standby power | |||||||||
| Gross engine power (kWb) | 719 | 899 | 985 | |||||||||
| Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW) | 657 | 828 | 910 | |||||||||
| Cylinders | 8-cylinder, in line | |||||||||||
| Cycle | 4 stroke | |||||||||||
| Induction system | Turbocharged | |||||||||||
| Combustion system | Direct injection | |||||||||||
| Compression ratio | 13.6:1 | |||||||||||
| Bore * Stroke (mm) | 160 * 190 | |||||||||||
| Cubic capacity (Litre) | 30.561 | |||||||||||
Alternator Specs
| Alternator | Famous brand | Leroy somer, Stamford, Marathon,Meccalte | |
| China Brand |
Ai Power, Kaijieli
|
||
| Power Range | 5kw to 3000kw | ||
| Insulation class | H | ||
| Phase/Wire | 3 phase/ 4 wire | 1 phase/ 2 wire | |
Control panel:Deepsea,Comap
| Brand | Deepsea/ComAp/Smartgen |
|
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
|
Optional-addtional parts :800 kw diesel generator price
| Engine | Fuel System | Cooling system | Exhaust system |
|
Coolant Heater Lube oil heater Electronic governor Engine oil temperature |
External Tank Water Separator |
50-60 Radiator, Remote radiator Cooling tower |
Heavy Duty air filter Silencer Enclosures |
| Alternator | Control System | Others | Voltage Connections |
|
Anti Condensation Heater Permanent Magnet Generator-PMG Drop CT-for paralleling |

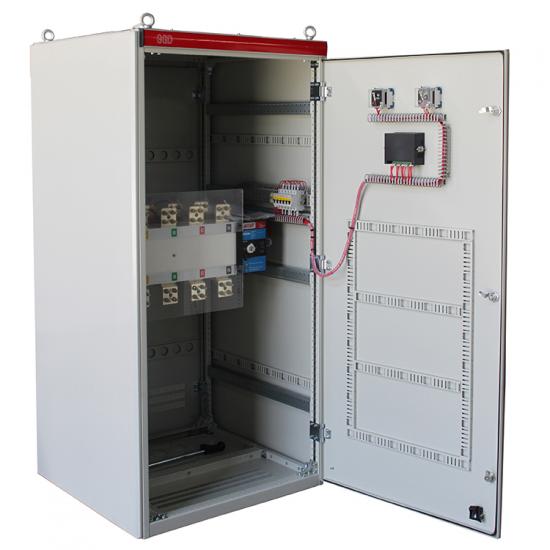

Remote Control Panel Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet |

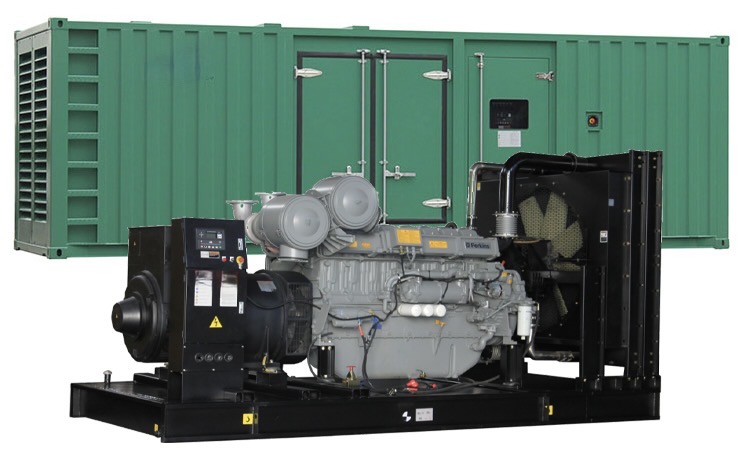

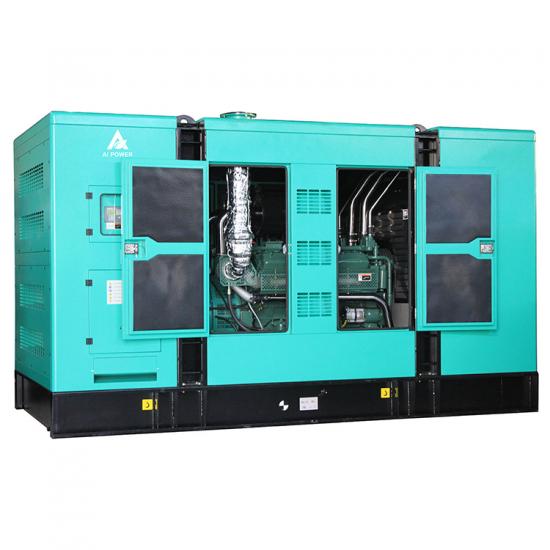

Rainproof Type Soundproof Type Containerized Type Trailer Type Spare Parts |
480/277V 440/254V 416/240V 400/230V 380/220V 240/139V 220/12 V 208/120V |
| High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available | |||
AI Power Factory Introduction
High quality, reliable and complete power unit
Compact design
Easy start and maintenance possibility
Every generating set is subject to a comprehensive test program which includes full load testing, checking and provision of all control and safety shut down functions testing
Fully engineered with a wide range of options and accessories: Canopy, sound proof canopy and on - road trailer
