Brand:
PerkinsItem NO.:
BP750Order(MOQ):
1Payment:
T/T 30%, 70% or LC 100% at sight.Price Range:
85000 - 90000/$1Product Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
30-45 daysProduct Detail

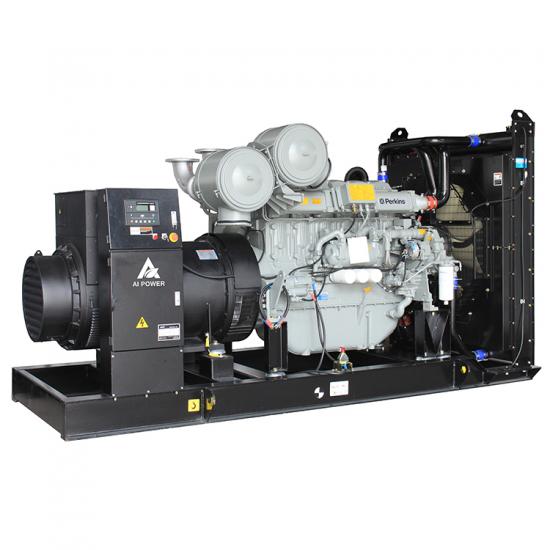

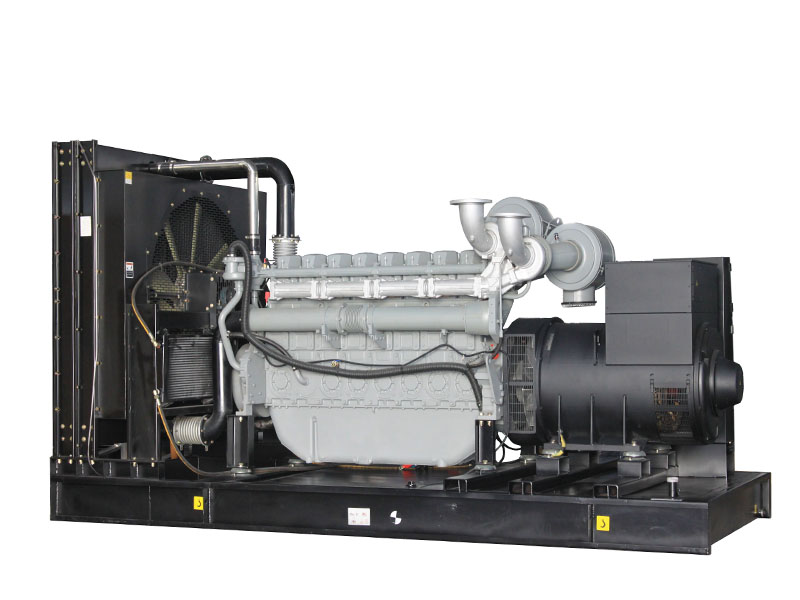

Emergency Diesel Generator In Power PlantPerkins Generator ManufacturerIn The World 4008TAG1A

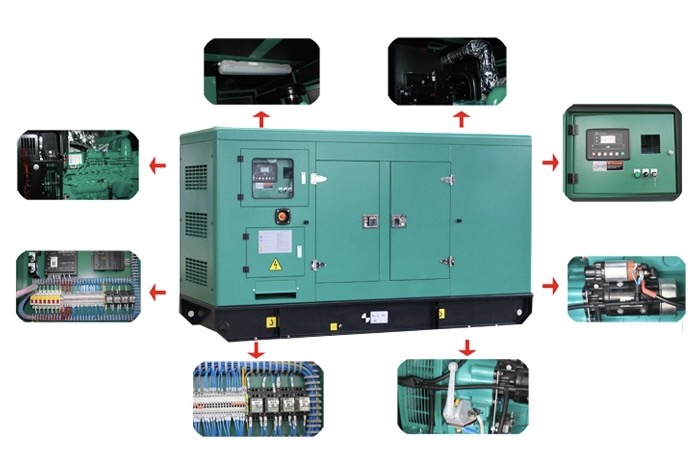

Standard Configuration
• Engine include air,fuel,oil filters, starting motor and charge alternator etc.
• Brushless AC alternator,single bearing, flange connection, w/AVR
• Radiator with engine driven fan mounted on skid
• Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
• Anti-vibration pads between engine/alternator and base frame
• Circuit breaker 3P as standard, 4P optional
• Auto control panel
• Start battery w/ connecting cable and floating battery charger
• Flexbile pipe, exhaust elbow, industrial silencer etc.
• Standard tools kit
• Electric drawing, test report ,operation & maintaince manual of generator etc.

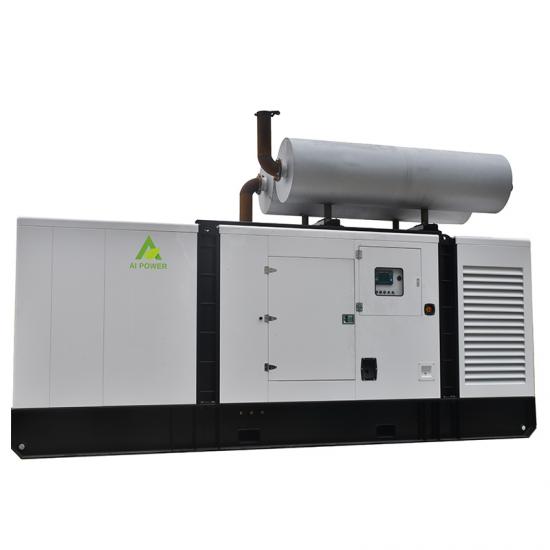

•Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc
output Ratings
genset generator maintenance model Voltage Hz Phase P.F. Prime Power Standby Power(V)
| Generator set model | Voltage | Hz | Phase | P.F. | Prime Power | Standby Power | ||
| (V) |
|
|
|
KVA | KW | KVA | KW | |
| AP1000 | 230/400 | 50 | 3 | 0.8 | 900 | 720 | 1000 | 800 |
GENERAL ENGINE DATA
| Engine manufacture | Perkins Engines Company Limited | |||||||||||
| Engine brand | Perkins | |||||||||||
| Engine model | 4008TAG1A | |||||||||||
| Engine speed (rpm) | 1500 | |||||||||||
|
|
Baseload power | Prime power | Standby power | |||||||||
| Gross engine power (kWb) | 644 | 805 | 882 | |||||||||
| Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW) | 586 | 739 | 812 | |||||||||
| Cylinders | 8-cylinder, in line | |||||||||||
| Cycle | 4 stroke | |||||||||||
| Induction system | Turbocharged | |||||||||||
| Combustion system | Direct injection | |||||||||||
| Compression ratio | 13.6:1 | |||||||||||
| Bore * Stroke (mm) | 160 * 190 | |||||||||||
| Cubic capacity (Litre) | 30.561 | |||||||||||
| FUEL SYSTEM |
|
|||||||||||
| Injection system | Direct | |||||||||||
| Governor type | electronic | |||||||||||
| Fuel Consumption (litre/hour) |
|
|||||||||||
|
|
Standby | 218 | ||||||||||
|
|
Prime | 195 | ||||||||||
|
|
Baseload | 154 | ||||||||||
|
|
75% output power | 143 | ||||||||||
|
|
50% output power | 98 | ||||||||||
|
|
25% output power | 52 | ||||||||||
Optional-addtional parts :800 kw diesel generator price
| Engine | Fuel System | Cooling system | Exhaust system |
|
Coolant Heater Lube oil heater Electronic governor Engine oil temperature |
External Tank Water Separator |
50-60 Radiator, Remote radiator Cooling tower |
Heavy Duty air filter Silencer Enclosures |
| Alternator | Control System | Others | Voltage Connections |
|
Anti Condensation Heater Permanent Magnet Generator-PMG Drop CT-for paralleling |
Remote Control Panel Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet |
Rainproof Type Soundproof Type Containerized Type Trailer Type Spare Parts |
480/277V 440/254V 416/240V 400/230V 380/220V 240/139V 220/12 V 208/120V |
| High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available | |||

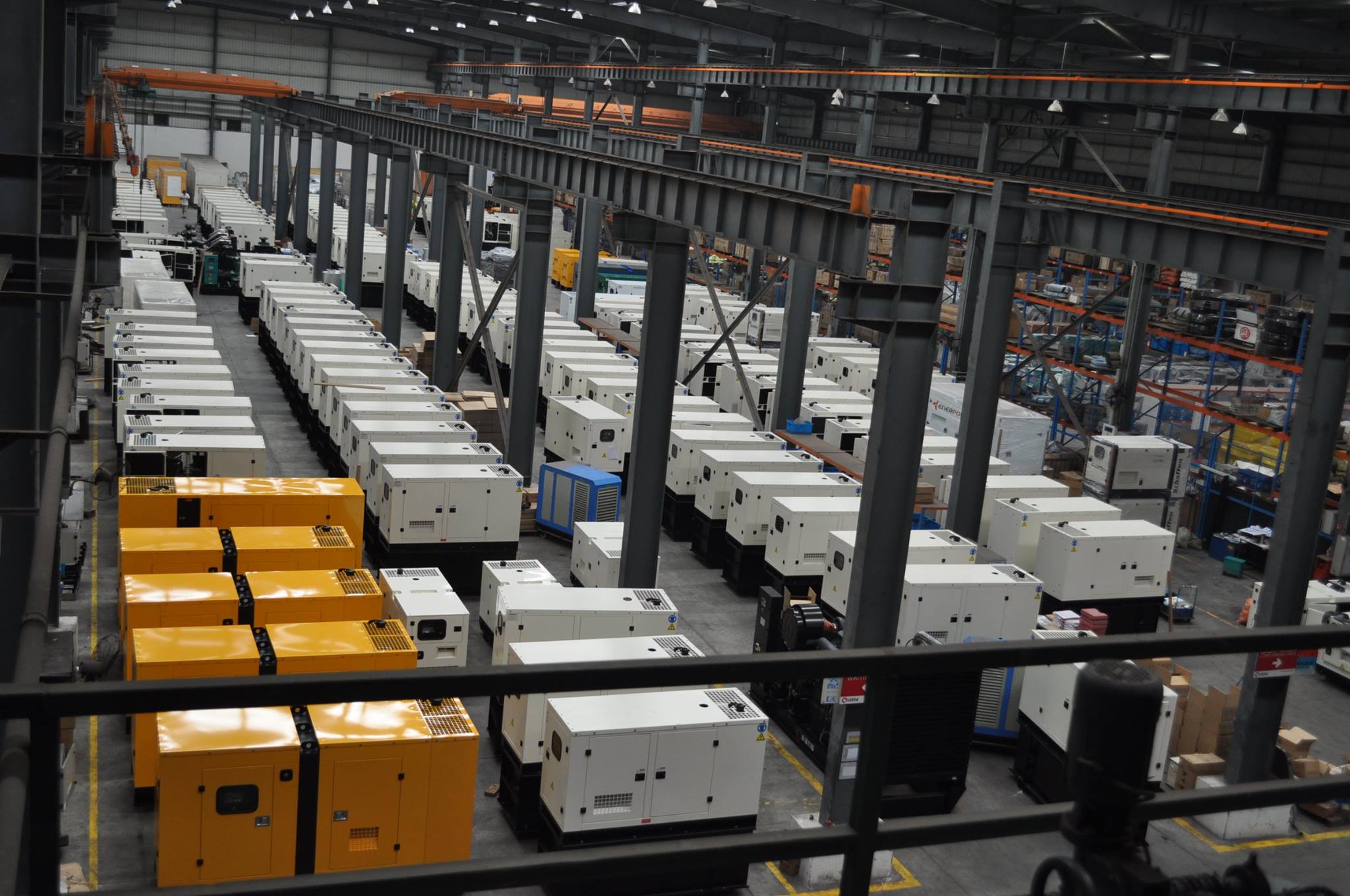

AI Power Factory Introduction
High quality, reliable and complete power unit
Compact design
Easy start and maintenance possibility
Every generating set is subject to a comprehensive test program which includes full load testing, checking and provision of all control and safety shut down functions testing
Fully engineered with a wide range of options and accessories: Canopy, sound proof canopy and on - road trailer
