BA Power Yuchai Series Diesel Generator Sets adopt the engines produced by Guangxi Yuchai Machinery Group Co., Ltd, which was founded in 1951. As a large-sized Modern Enterprises Group, Yuchai intergrated the engine industry chain and the petrochemical industry chain, and conducted the diverisified industry operation, Yuchai has already become a domesitc leading industrial conglomerate through lean management and group operation.

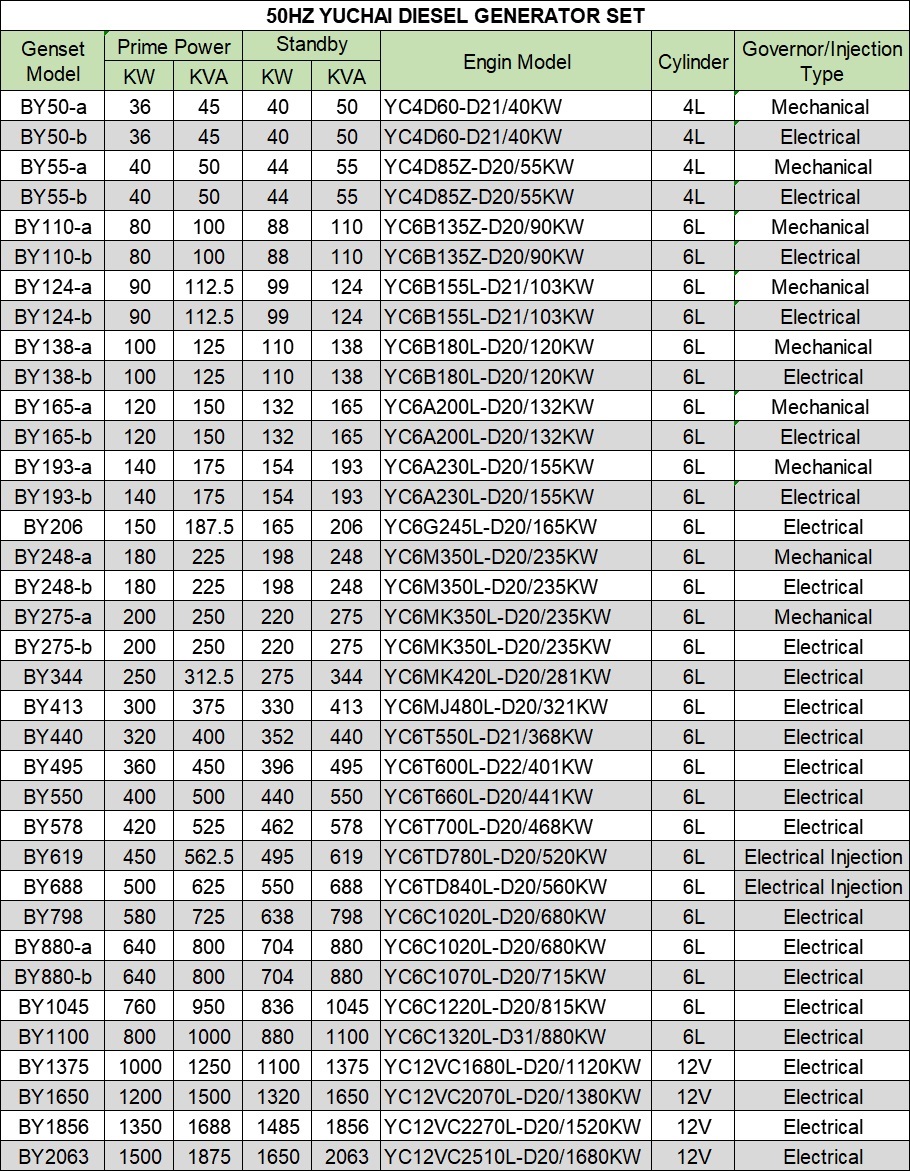

Yuchai Diesel Generator Sets 45kva to 1650kva Open Type

Engine Brand: Yuchai engine

Power Range: 36kw/45kva to 1500kw/1650kva

Speed/Frequency: 1500rpm/50hz, 1800rpm/60hz

Phase: 3 Phase, 4 Wires

Protection Class: IP23

Yuchai Gensets Standard Configuration:

1. Assembled by Yuchai diesel engine and high quality branded alternator.

2. Radiator and fan with safety guard, or heat exchanger.

3. Heavy duty steel base frame with great capacity fuel tank for options.

4. Vibration damping supports between engine/alternator and base frame.

5. Heavy duty industrial type exhaust silencer with flexible bellow.

6. High capacity sealed lead acid battery with battery cable.

7. Intelligent control panel, Deepsea or Comap brand for options.

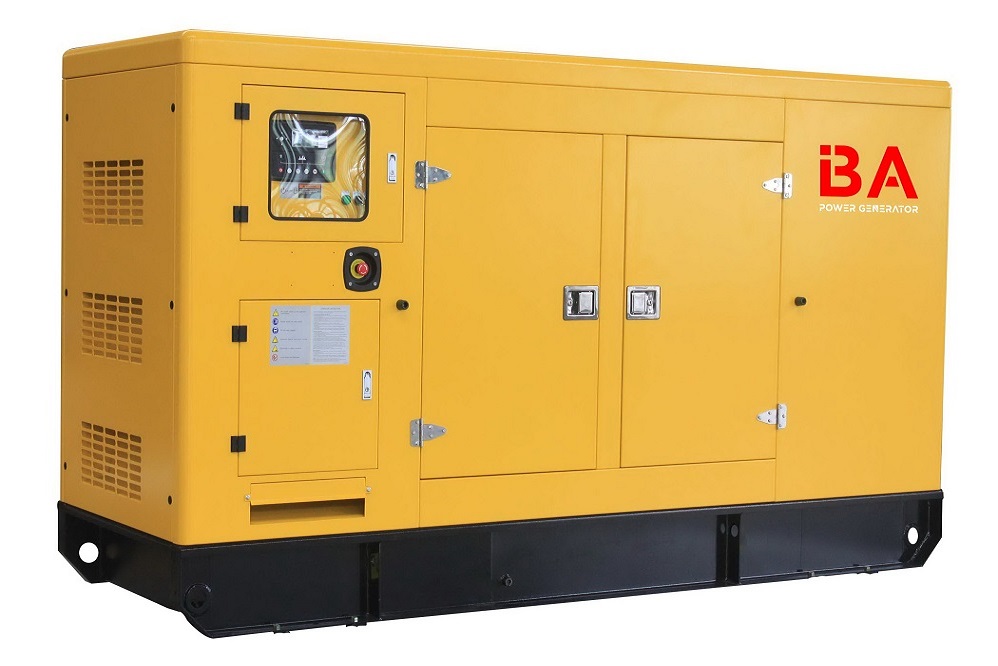

Yuchai Middle Power silent type 100kva to 500kva gensets

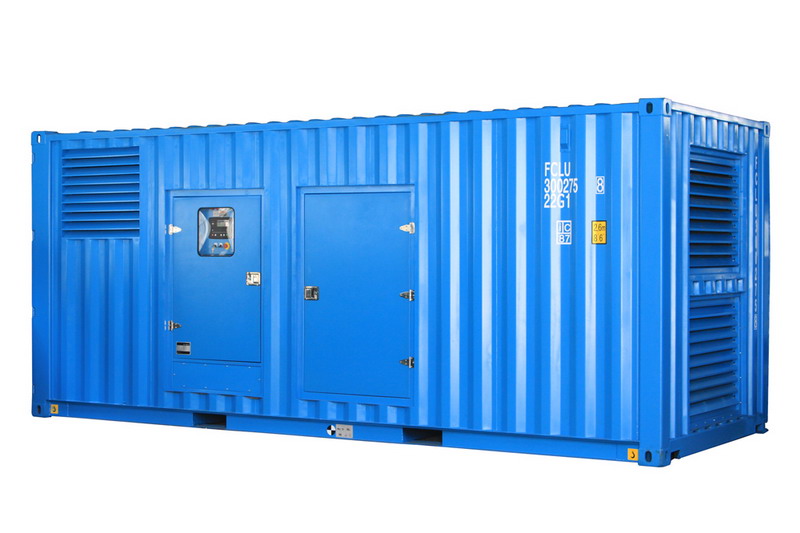

Yuchai Power Generator Sets Container Type 700kw to 1500kw

Yuchai Silent Gensets performance in details:

● More than 2mm thick steel to make the canopy.

● High quality paint materials and strict powder paint processing.

● large-scale impedance combined type silencer effectively reducing noise of the generator.

● Stainless steel door locks and hinges and 1800Crevolvable and disassemble door for easy maintenance.

● High quality soundproof and insulation materials could efficiently reduce noise.

● Transparent viewing window make the control panel clear at a glance.

● Lifting ear is mounted in the base frame for easy pull.

● Elegant appearance and reliable quality.

●From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.

● ISO standard 20GP, 40GP and 40HQ sea container canopy for options.

● Standard sea container canopy is easier for shipping.

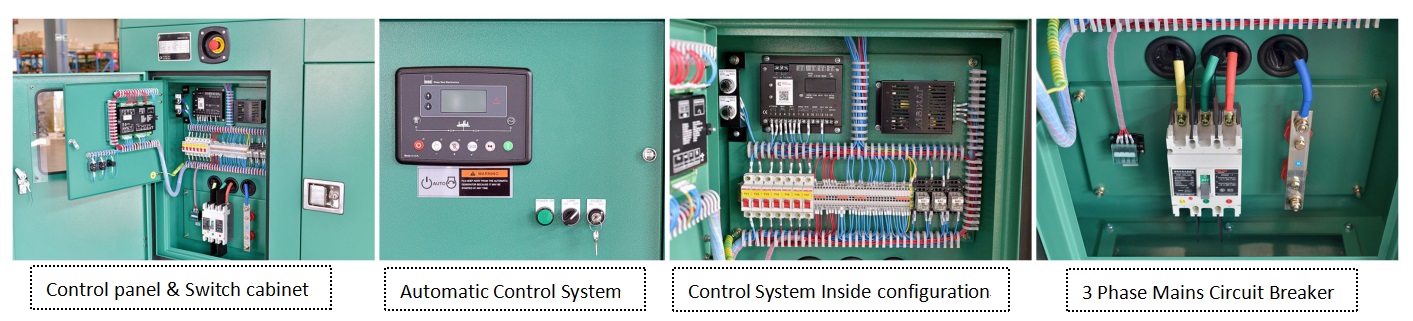

Control Systems in details

BA Power Diesel Genset Deepsea Control System components

1. Deepsea Controller Appearance Configuration

• LCD dispaly with Operation Buttons
• Power Indicator
• Power on-off Switch with key
• Lamp on-off Switch
• Emergency Power Stop with Caution Lable
• Control panel Door with Lock

2. Engine Generator Controller Inside Configuration

• Engine Generator Controller
• Voltage/Speed Trimer Speed controller
• Mains Battery Charger
• MCCB using for the protection
• Wiring Connection Terminals
• Protection Relays

3. Protection Function

• Low oil Pressure
• High water temperature
• High voltage and low voltage
• Over current and over speed
• Voltage adjuster and Frequency Adjuster
• Emergency power stop
• Low fuel alarm and shutdown
• Low coolant alarm and shutdown
