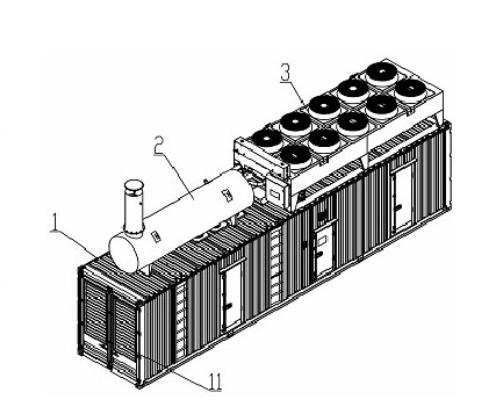

A top kind cooling container-type dg generator, mainly including

(1)a container ,

(2)an exhaust muffler,

(3)a horizontal water tank,

(4)a diesel generator set,

(5)an axial fan ,

(6 )and a control panel ,

(7)Output cabinet,

(8)daily fuel tank,

(9)air intake muffler array ,

(10)air exhaust muffler array ,

(11)air intake shutters ,

(12)air exhaust shutters ,

which The characteristics are:

(1)the horizontal water tank

(2) and the exhaust muffler

(3)are placed on the top of the container ,

(4)and the horizontal water tank

(5)and the exhaust muffler

(6)are arranged on both ends of the top of the container :

(7) the container There is a diesel house generator

(8) in the middle of the inside:

(9）a daily fuel tank  is placed on the left end

（10）and an exhaust muffler arrayx

is installed above the daily fuel tank

(11)The array

(12) is arranged on the right end of the container

(13)an axial fan

(14)is arranged between the daily fuel tank

(15) and the power generation industry

(8)and the axial fan

(7) is installed on the partition

8）The baffle can prevent the backflow of radiant heat and hot air from the best diesel generator

(9)the air intake muffler array

(10)is placed between the large generator

(11)and the output cabinet :

(12)the control panel

(13)is installed in the container

(14)On the side, close to the dg set kva ;

(15)the inlet shutter

(16)and the exhaust shutter

(17)are installed separately Container  right and left.
